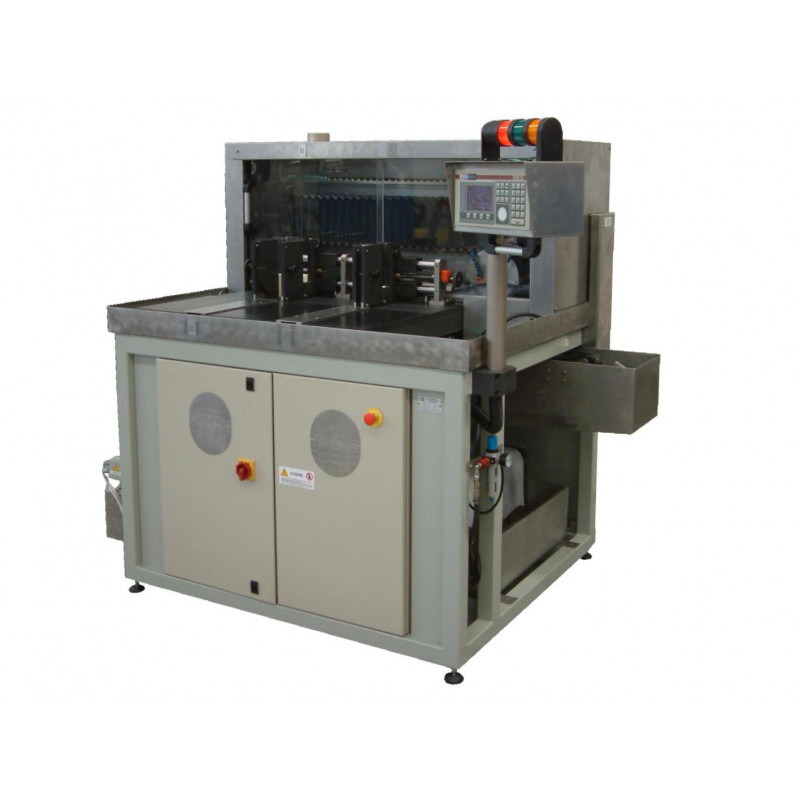

203T - TANGENTIAL SECTIONING MACHINE WITH DOUBLE STORAGE FOR ABRASIVE STONES CUTTING
Tangential sectioning machine with double automatic storage and product unload belt for abrasive stones cutting or for other composite materials.
Send me more info for the product :203T - TANGENTIAL SECTIONING MACHINE WITH DOUBLE STORAGE FOR ABRASIVE STONES CUTTING
You must fill all fields
- Iron frame welded, stabilized sand-blasted, then worked to have a perfect axles squareness.
- Inside painted with a special anticorrosive treatment; externally beige RAL 7038, other colors on request.
- Inside components in stainless steel, bronze and special aluminum.
- Air system for the spindle cooling and the separation of the coolant in the rotation area of the front spindle bearings.
- Watertight Spindle and motor Assembly.
- Rotating panel control with mobile arm to easily reach the controls and have the complete vision of the working area.
- Safety systems following CE rules.
- Manual emergency push-button.
- Interlocked cover-guard safety micro-switch, with possibility to be opened only in case movements are completely stopped and steady.
- Cooling system managed by a closed-cycle electric pump with three ways tap to wash the machine inside.
- Fitted to connect to a steam aspirator.
- Filter system with paper filter.
OTHER OPTIONAL DEVICES ON REQUEST
- GRINDING WHEEL MOTOR
- Ø GRINDING WHEEL
- STANDARD VOLTAGE
- 400V - 50Hz - THREE-PHASE
- VARIABLE SPEED WHEEL
- GRINDING WHEEL ARM MOVEMENT
- LONGITUDINAL SET ON LINEAR GUIDES
- VERT. STROKE GRINDING WHEEL'S ARM
- LONGITUDINAL STROKE
- 166 X 125 X H 162cm
